3D Machine Vision System

Canon 3D Machine Vision System RV Series

An innovative range of high-speed 3D recognition systems designed to serve as the ‘eyes’ of industrial robots.

Yhteydenottopyyntö

Productive 3D image recognition

Fast and accurate ‘Eye to Capture’ recognition of even complex target parts for productive robotic arm systems in automotive and electronics manufacture.

Canon Machine Vision RV1100

Quickly and accurately target and pick larger parts – including parts with multiple curved surfaces and complex structures - across a wide area and long distance using Canon’s innovative recognition software.

Specifications

1160x1160x600 mm

Wide measurement range

1750 mm

Long working distance

2.5 sec

Fast recognition time

45x45mm

Minimum work size

252 x 206 x124 mm

Compact 3D Machine Vision head

6.4kg

Weight

Katso kaikki tekniset tiedot

Canon RV Series

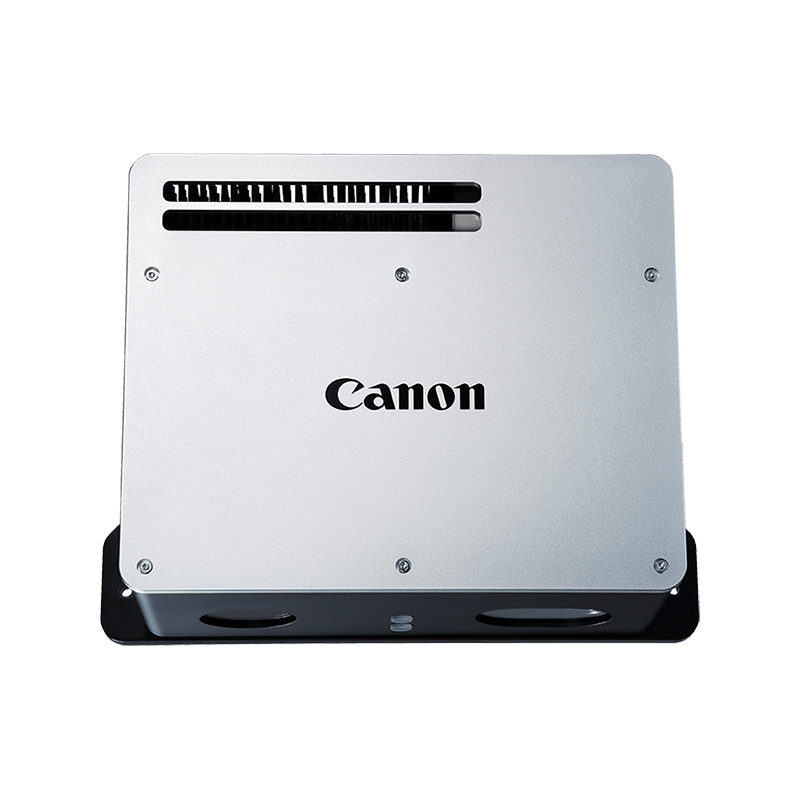

Canon Machine Vision RV500

High speed recognition of medium sized parts down to 20 x 20mm in size, thanks to simple CAD data input and quick one time 3D visual capture using Canon’s innovative recognition software.

Specifications

540x540x200 mm

Medium measurement range

800 mm

Medium working distance

1.8 sec

Fast recognition time

20x20mm

Minimum work size

252 x 206 x124 mm

Compact 3D Machine Vision head

6.4kg

Weight

Katso kaikki tekniset tiedot

Canon RV Series

Canon Machine Vision RV300

Effortlessly and accurately target production lines of smaller parts in random piles. No complicated programming is required – just simple CAD data input and quick one time 3D visual capture using Canon’s innovative recognition software.

Specifications

340x340x100 mm

Small measurement range

500 mm

Short working distance

1.8 sec

Fast recognition time

10x10mm

Minimum work size

252 x 206 x124 mm

Compact 3D Machine Vision head

6.4kg

Weight

Katso kaikki tekniset tiedot

Canon RV Series
